Dried natural quartz silica sands

Silica or also called quartz sand is sorted by wet and dry screening processes. Our Quartz Q silica sands are fire dried in our industrial processes. Quartz Q posseses a hygiene certificate for building products and filtermedia. It is available in 20 standard primary fractions, other granulations on request.

It is mainly used for applications as:

Filter medium for water processing plants. As a filler in resin bonded flooring systems, based on epoxy-based resins, polyurethanes or methyl methacrylate. Also it finds application in so called cementbased dry-mix mortar systems as a dry filler. This to achieve excellent products as plasters, concrete, cementbased floorings, mortars or tile clay. Quartz Q can also be used for decorative or functional prefab building elements.

Dried sand is also used in concrete products, sport fields, wet-blasting, water filtration, as well as roofingsystems (protection and isolation), gardens ,terraces, children playgrounds, roads and aquariums.

Our sand has a high abrasion resistance and good natural strength parameters. Also it is precisely sorted in industrial processes.


    Technical specifications:
  • Quartz Hardness (Mohs): 7
  • Density: 2,65 g/cm³
  • Humidity: 0,1%
  • Weight compact: 1,55 t/m³

It is standard packed in 25 kg PE ventile bags / Big Bag of 1000 kg / 25 kg paper bags on request

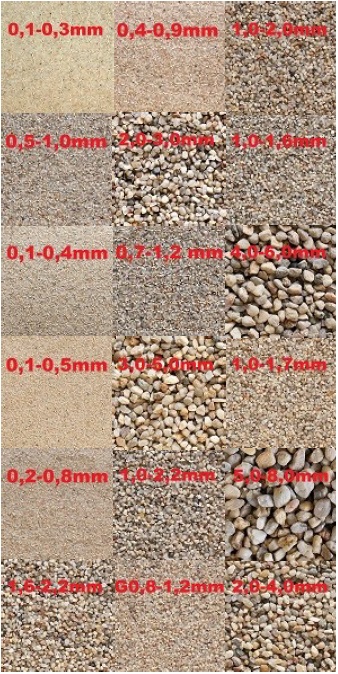

Available standard granulations

  • QD 0,1-0,2 mm
  • QS 0,1-0,3 mm
  • QQ 0,1-0,4 mm
  • QQ 0,1-0,5 mm
  • QQ 0,2-0,6 mm
  • QQ 0,2-0,8 mm
  • QQ 0,4-0,9 mm (before 0,4-0,8)
  • QQ 0,5-1,0 mm
  • QS 0,8-1,0 mm
  • QS 0,7-1,2 mm
  • QS 0,8-1,2G mm
  • QS 1,0-1,6 mm
  • QQ 1,0-1,7 mm
  • QQ 1,0-2,0 mm
  • QQ 1,0-2,2 mm
  • QQ 1,6-2,2 mm
  • QQ 2,0-3,0 mm
  • QQ 2,0-4,0 mm
  • QS 3,0-5,0 mm
  • QS 4,0-6,0 mm
  • QS 5,0-8,0 mm

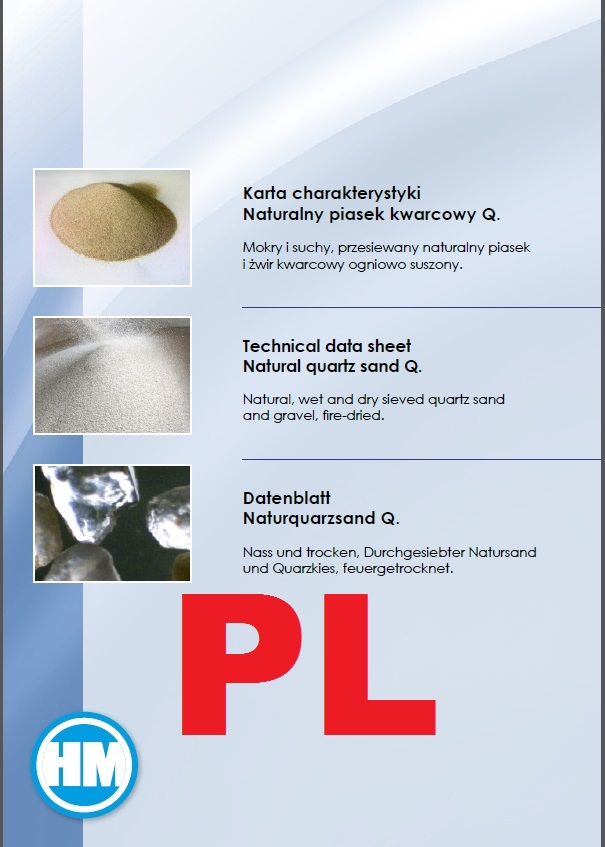

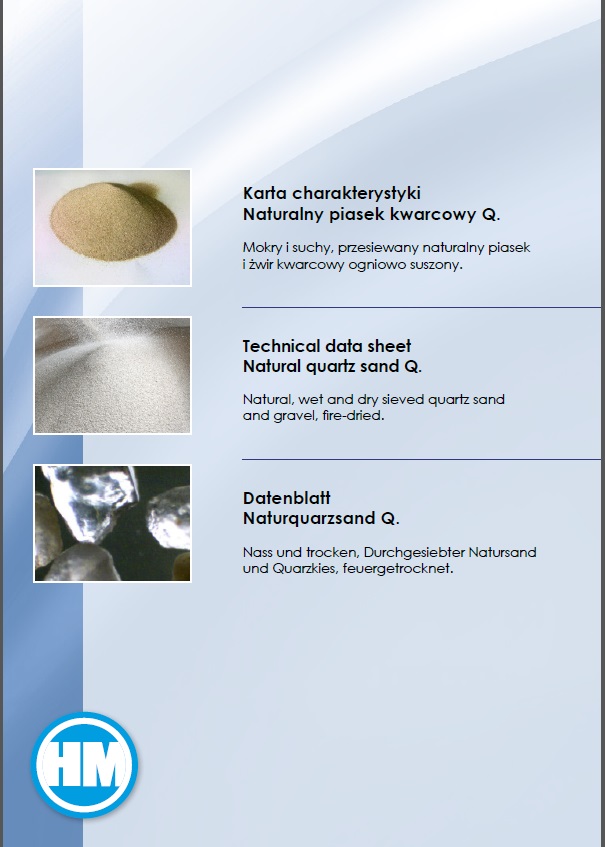

Technical datasheet Leaflet Blue Quartz Q

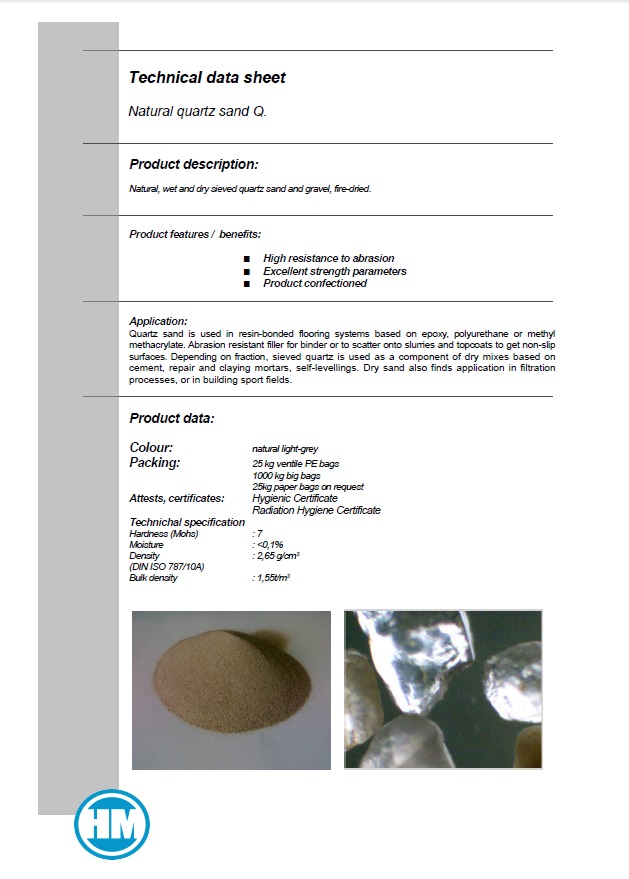

Technical datasheet BW Quartz Q

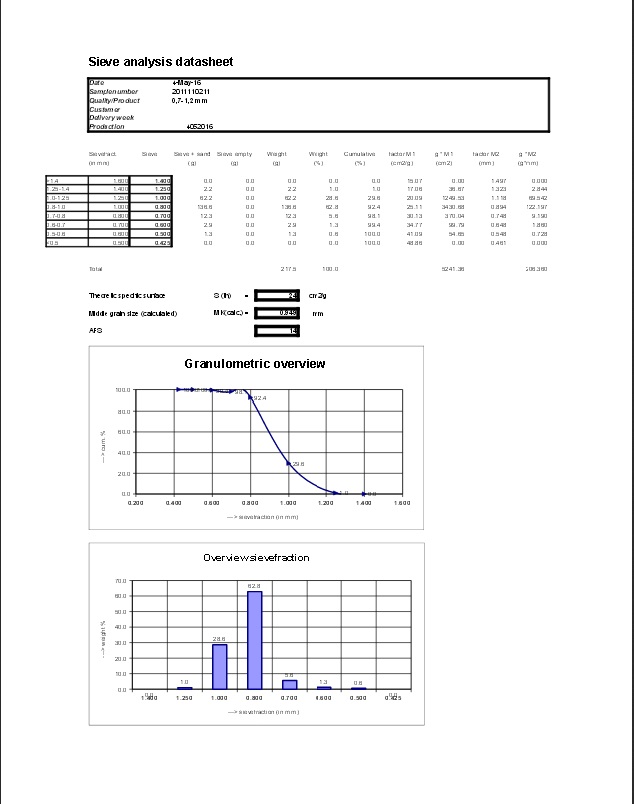

Sieve analysis all granulations
